DC Motors
Low Voltage & DC Motors
Maximum flexibility for your industrial application requirements
> Power rating: 2 – 6000 kW
> Voltage: up to 1,000 V
With over 100 years of experience in motor manufacturing, Nidec is expert in special application machines. DC machines continue to be used in a variety of markets thanks to their intrinsic value. Based on a modular design, Nidec DC machines offer a vast selection of mounting arrangements, cooling systems, types of protection and accessories to choose from in order to guarantee maximum flexibility in meeting your application needs.

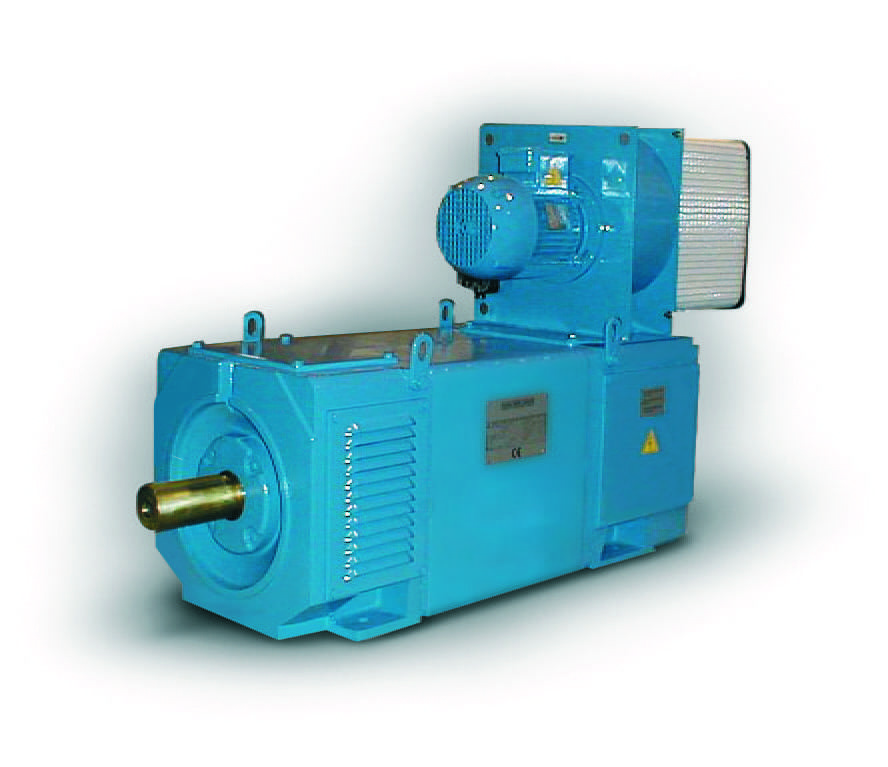

Serie GH
• Power rating: 50 – 1600 kW
• Voltage: up to 800 V
• Mass: 800 – 13.000 kg
• Number of poles: 4 – 6
• Frame Size: 225 – 630mm
• Type of cooling: IC 06, IC 666, IC86W, IC37, IC 17 (always forced-ventilated)
Serie DH
• Power rating: 700 – 2500 kW
• Voltage: up to 1,000 V
• Mass: 10.000 – 25.000 kg
• Number of poles: 8
• Frame Size: 710 – 900mm
• Type of cooling: IC 06, IC 666, IC86W, IC17, IC37
Serie MD
• Power rating: ≤500 kW
• Voltage: ≤500V
• Mass: 400 – 9000 kg
• Frame Size: 804 – 824mm (split frame) / 810 – 816mm (laminated frame)
• Type of cooling: IC06, IC666, IC86W, IC37, IC410
• Mounting arrangements: horizontal or vertical
• Application: Small steel mill armored motors (AISE Std)

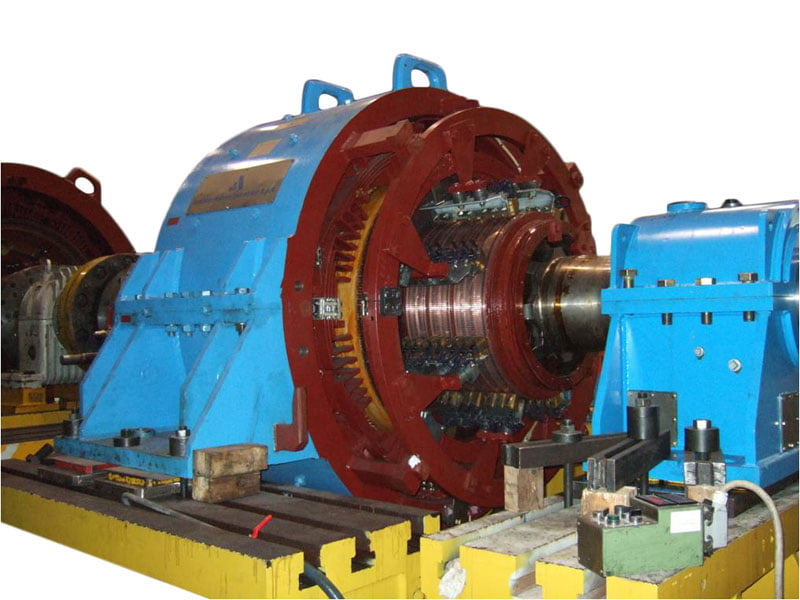

Serie MMT
• Number of poles: 8-24
• Voltage: ≤1000V
• Mass: up to 200.000 kg
• Frame Size: stator (OD) up 6000 mm size according to number of poles
• Type of cooling: IC06, IC666, IC86W, IC37 (always force ventilated)
• Mounting arrangements: horizontal
• Application: Large high-torque steel mill motors
